Dust-Proof Test
Because outdoor LED screen will inevitably have some dust invasion, we must carry out the dust-proof test to prevent the dust and dirty enter LED screen in case it affects the normal use of LED screen.Place the LED screen in the dust-proof Test Chamber to process the test and simulate different scenes about dust or dirty spray or float into the screen in daily life, therefore effectively prevent these phenomena happen. Make sure the LED screen is completely dust-proof.
Dust-Proof Test
Shock-Proof Test
The test shall comply with the requirements of 5.2.4 and shall be carried out in accordance with the requirements of GB/T2423.
Process the LED screen test, without protection around the screen, fix the LED screen to the center of the test bench according to its actual ap
plying position.
Vibration Data
1.Test Instrument：Vibration table GLCS-S-177
2.Direction of vibration：axis X / axis Y / axis Z.
3.Scanning rate：1oct/min；
4.Test Time：30 minutes.
After the test, check the test equipment and make sure there is no damage for the test instrument,the fastener does not loose or drop , and equipment works normally when power on.
Shock proof test
High Temperature
3U LED screens are tested at high temperatures as follows：Place one LED screen in a test chamber with a room temperature of 80 °C；Turn on the power and light up the LED screen，And observe whether there is damage to the display screen, material deformation and other abnormal phenomena.
After the LED panel is tested, the LED panel is controlled by relay under this condition, and the test setting is 8 hours without interruption. No abnormal phenomena such as surface painting peel off,color fading, cracking and material deformation will occur after the high temperature test. After impact test, there shall not power leakage, no light or other electrical abnormal phenomena.
High temperature test
Low Temperature Test
3U VIEW LED screens are tested at low temperatures as follows：Place an LED screen in a test chamber at-35.04 degrees Celsius. Turn on the power to light the LED screen and observe whether there is damage to the display screen, cold deformation of materials and other abnormal phenomena.
Power the LED screen by relay to process the impacting test, continue the test 8 hours without interruption. Observe and make sure no abnormal phenomena is allowed, such as surface painting peel off, color fading, material cracking or material deforming after low temperature. Make sure no power leakage, LED screen fails to power on, or any other abnormal issues.
low temperature test
Waterproof test
The test data for fixing an LED screen in the desired position is as follows:
Test Instrument：Test equipment for strong flushing water and rain GLCS-S-107
1.Rotary speed：1RPM
2.Nozzle bore：6.3MM
3.Water flow：12.5L/min
4.Distance between nozzle and LED screen：2.5-3m
5.Spray test time：3min
After the test flush, disassemble the interior and screen surface without water.
Waterproof test
Salt spray test
In order to verify that metal parts of the product will not corrode when exposed to the atmosphere or other environment and can be stored for a long time, HSV was tested for salt spray：
Temperature:21.2°C Humidity:57%RH
Reference Basis:GBT 2423.17-2008
Test Condition:
1.Saline concentration:5% NaCl
2.PH Value:6.9
3.Test temperature:35°C
4.Spray volume:1.5ml/80cm2/h
5.Test duration:24H
After the test,there is no obvious visual corrosion in the appearance,and the power function is normal
Salt spray test
| |
Standard:Invention patent Number:ZL 2018 1 1082966.9 Issue Date:2021-02-23 Expiry Date:2041-02-23 Scope/Range:led display Issued By:State Intellectual Property Office |
| |
Standard:3C Number:2021010903429990 Issue Date:2021-11-03 Expiry Date:2026-11-03 Scope/Range:led display Issued By:China Quality Certification Centre |
 |
Standard:Invention patent Number:ZL 2017 2 1354239.2 Issue Date:2018-04-17 Expiry Date:2038-04-17 Scope/Range:led display Issued By:State Intellectual Property Office |
 |

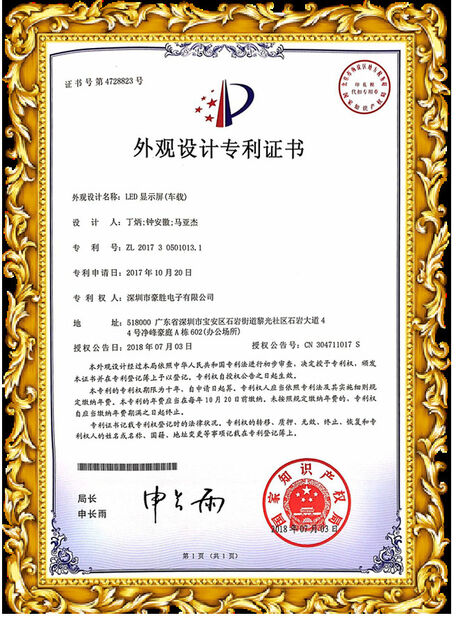

Standard:Appearance design patent certificate Number:ZL 2017 3 0501013.1 Issue Date:2018-07-03 Expiry Date:2028-07-03 Scope/Range:led display Issued By:State Intellectual Property Office |
 |
Standard:Invention patent Number:ZL 2017 2 1354237.5 Issue Date:2018-04-17 Expiry Date:2038-04-17 Scope/Range:led display Issued By:State Intellectual Property Office |
 |
Standard:Invention patent Number:ZL 2018 2 0266111.0 Issue Date:2018-09-04 Expiry Date:2038-09-04 Scope/Range:led display Issued By:State Intellectual Property Office |
 |
Standard:Invention patent Number:ZL 2018 2 0266100.2 Issue Date:2018-02-24 Expiry Date:2038-02-24 Scope/Range:led display Issued By:State Intellectual Property Office |
 |
Standard:Computer software copyright Number:2019SR1202346 Issue Date:2019-07-18 Expiry Date:2039-07-18 Scope/Range:LED display advertising platform Issued By:State Copyright Bureau |
 |
Standard:Computer software copyright Number:2020SR0516011 Issue Date:2019-06-23 Expiry Date:2039-06-23 Scope/Range:LED display advertising platform Issued By:State Copyright Bureau |
 |
Standard:Computer software copyright Number:2020SR0519257 Issue Date:2019-12-26 Expiry Date:2039-12-26 Scope/Range:LED display advertising platform Issued By:State Copyright Bureau |
 |
Standard:Computer software copyright Number:2019SR1209505 Issue Date:2019-09-26 Expiry Date:2039-09-26 Scope/Range:LED display advertising platform Issued By:State Copyright Bureau |
 |
Standard:Computer software copyright Number:2021SR0397596 Issue Date:2020-06-19 Expiry Date:2040-06-19 Scope/Range:LED display advertising platform Issued By:State Copyright Bureau |
 |
Standard:Computer software copyright Number:2021SR0397594 Issue Date:2020-04-17 Expiry Date:2040-04-17 Scope/Range:LED display advertising platform Issued By:State Copyright Bureau |
 |
Standard:Invention patent Number:ZL 2018 2 2238712.3 Issue Date:2018-12-28 Expiry Date:2038-12-28 Scope/Range:led display Issued By:State Intellectual Property Office |
 |
Standard:Invention patent Number:ZL 2020 2 1344363.4 Issue Date:2020-07-10 Expiry Date:2040-07-10 Scope/Range:led display Issued By:State Intellectual Property Office |
 |
Standard:Invention patent Number:ZL 2020 2 1344033.5 Issue Date:2020-07-10 Expiry Date:2040-07-10 Scope/Range:led display Issued By:State Intellectual Property Office |
 |
Standard:Invention patent Number:ZL 2020 2 1600998.6 Issue Date:2020-08-04 Expiry Date:2040-08-04 Scope/Range:led display Issued By:State Intellectual Property Office |
 |
Standard:Appearance design patent certificate Number:ZL 2017 3 0501014.6 Issue Date:2017-10-20 Expiry Date:2037-10-20 Scope/Range:led display Issued By:State Intellectual Property Office |
 |
Standard:Computer software copyright Number:2021SR0397595 Issue Date:2020-10-16 Expiry Date:2040-10-16 Scope/Range:LED display advertising platform Issued By:State Copyright Bureau |
 |
Standard:Invention patent Number:ZL 2017 2 1354237.5 Issue Date:2017-10-20 Expiry Date:2037-10-20 Scope/Range:led display Issued By:State Intellectual Property Office |
 |
Standard:Certificate of quality Number:BSTDG1705792390001SC-2 Issue Date:2017-05-05 Expiry Date:2037-05-05 Scope/Range:led display Issued By:shen zhen BST Technology Co.,Ltd |
 |
Standard:FCC Verification Confomity Number:BST150841810001Y-1EC-3 Issue Date:2016-08-06 Expiry Date:2036-08-26 Scope/Range:led display Issued By:shen zhen BST Technology Co.,Ltd |
 |

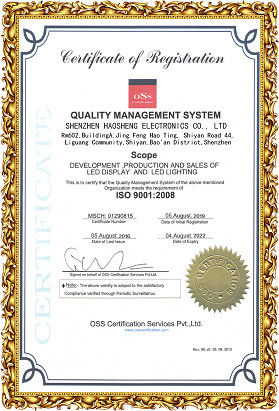

Standard:ISO certification Number:01290815 Issue Date:2016-08-05 Expiry Date:2019-08-04 Scope/Range:led display Issued By:OSS Certification Services Pvt.,Ltd |
 |
Standard:ROHS Certificate of Compliance Number:BST1508418150001Y-1RC-4 Issue Date:2016-08-06 Expiry Date:2036-08-06 Scope/Range:led display Issued By:shen zhen BST Technology Co.,Ltd |
 |
Standard:Certification of energy-saving products Number:CQC17701168658 Issue Date:2020-05-08 Expiry Date:2023-05-08 Scope/Range:led display Issued By:China Quality Certification Centre |
 |
Standard:Environmental Management Number:01412E10117BOS Issue Date:2021-10-25 Expiry Date:2024-10-25 Scope/Range:led display Issued By:China United Certification Centre |
