Product Details:
|
| Name: | Rear Window Transparent LED Display | Pixel Pitch: | 2.9*5.6mm |
|---|---|---|---|
| LED Type: | SMD1921 | Display Size: | 1000*320mm |
| Ave. Power ( ≤W/Set): | 57w | Cabinet Weight: | 6.5 KG/PCS |
| Power Supply: | 12V | Brightness: | ≥4500㎡ |
| High Light: | ODM led screen for car back window,SMD1921 led screen for car back window,SMD1921 car back window led display |
||
Patented Design P2.9 Rear Window LED Display 57w SMD LED Display
Description
Rear Window Led Display is ideal for e-hailing car, taxi and private car rear window adverting displays. As a professional vehicle LED screen manufacturer, 3U View can give your the best product and best services. Drop me you need, we do the rest!
Advantages
1. The display size of Rear Window LED Display is 1000*320mm2 and the size of the whole product is 1012*337*47. It is light and thin without taking up space in the car.
2. The product is integrated with a GPS device, you can play the ads you want in different ares and know the ads broadcast situation anytime.
3. High brightness. Using pixel pitch 2.9*5.6 SMD LED display module, luminance reach 4500cd/m2. Our Rear Window LED Display can be seen very clearly in direct sunlight.
4. It can play a variety of media resources such as text, photos, animation, video and so on.
5. The controlling and editing has never been as easy as now. Through 4G or WiFi, you can control your device no matter where you are.
Product Parameters
| Pixel Pitch | 2.9*5.6mm2 | Cabinet Material | Iron |
| Display Size | 1000*320 | Cabinet Color | silver |
| Module Size | 250*320 | Cabinet Weight | 6.5 KG/PCS |
| Screen Resolution | 176*108 | Viewing Angle | 120°/120° |
| Module Resolution | 44*108 | Refresh Rate | 1920Hz |
| Cabinet Size | 1012*337*47 | Brightness | 4500 cd/m2 |
| Max. Power (≤W/ set) | 190W | Driving Method | 1/12 |
| Ave. Power (≤W/ set) | 57W | Supported Formats | JPG,GIF ,BMP, WMF,MP4 |
| Input Voltage | DC12V | Screen lifespan | ＞100000 hours |
| Output Voltage | DC5V | Environmental Requirements |
Temperature: - 40℃ ~ + 80 ℃ Humidity: 10% ~ 95% RH |
FAQ
Q: What brand of lamp beads do you use?
A: We use the Guoxing encapsulated lamp beads, if you have requirements on the lamp beads, we can also accept customization.
Q: How to reduce the temperature of Rear Window LED Display?
A: 1.The main material of cabinet is aluminum, which can quickly emit the temperature of the screen.
2. The screen is integrated with a temperature controlled fan. When the temperature inside the screen reaches above 40 degrees, the fan will start automatically to lower the operating temperature inside the screen.
Q: How does the screen adjusts its brightness?
A: Our Rear Window LED Display isn’t equipped with a light sensor because it is installed inside the car. But if you have a need, we can customize for you.
Q: What protections does screen has for power supply?
A: Our power supply is specially customized for the Car LED Screen, in addition to the normal short circuit protection, over current protection, over voltage protection, reverse polarity protection and delay start function, which can well protect the car battery and other electronic equipment.
Q: Why is your screen starting so slowly?
A: In order to protect the battery and other electronic equipment on the car, we adopt the delay start function to avoid the impact of the instantaneous current on other electronic equipment.

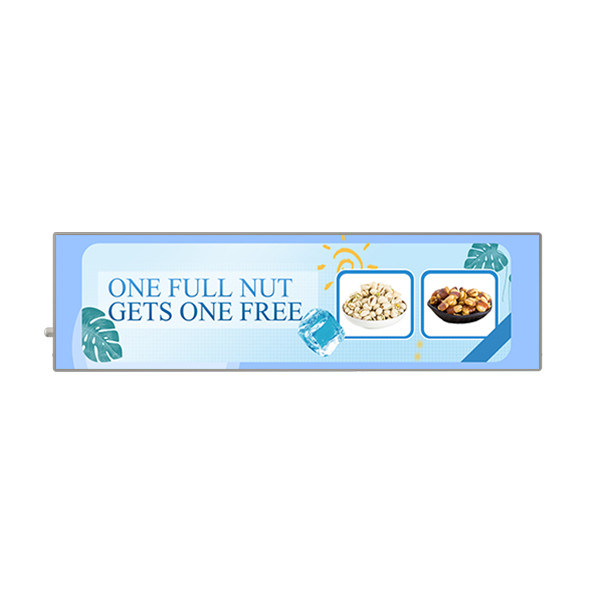

Rear Window LED Display Pictures
