Product Details:
|
| Name: | Bus Led Display | Pixed Pitch: | 4.5*3.75mm |
|---|---|---|---|
| LED Type: | SMD1921 | Display Size: | 1620*360mm |
| Ave.Power（≤W/ Set）: | 150w | Cabinet Weight: | 12KG/PCS |
| Power Supply: | 24V | Brightness: | ≥4500CD/m² |
| High Light: | 150w bus led panel,remote control bus led panel,24v bus led display board |
||

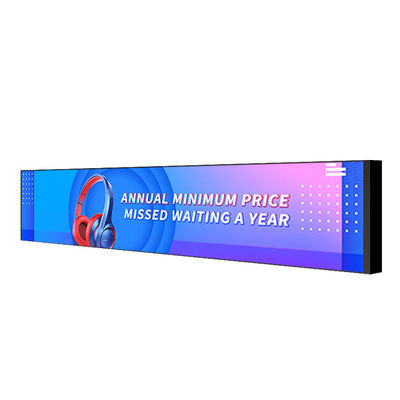

Remote Control P3.75 Bus LED Screen Intelligent Advertising media platform
Description
3U View Screen is a new mobile media platform that could display advertisements. Different from the traditional media, 3U View vehicle LED screen is able to switch advertisements intelligently according to location and traffic information through the built-in GPS module. If you’re looking for a product that has the performance and the ads effect that you need. 3U View is the best choice for you!
Advantages
1. The power consumption is as low as 150w on average.
2. Light and thin structure, only 12KG/PCS.
3. Bus LED Screen passed a variety of tests, which is anti-static, anti-vibration, high temperature and moisture-proof.
4. It support 4G and WiFi, which has advertising release system and cluster control. Meanwhile, GPS, secondary development are introduced as well.
5. High brightness and high refresh rate. Even in direct sunlight, Bus LED Screen is highly visible and provide superior visuals.
Product Parameters
| Pixel Pitch | 4.5*3.75mm | Cabinet Material | Iron |
| Display Size | 1620*360mm | Cabinet Color | Black |
| Module Size | 180*360mm | Cabinet Weight | 12KG/PCS |
| Screen Resolution | 360*96 | Viewing Angle | 120°/120° |
| Module Resolution | 40*96 | Refresh Rate | 1920Hz |
| Cabinet Size | 1625*375*60 | Brightness | 4500 cd/m2 |
| Max. Power (≤W/ set) | 500W | Driving Method | 1/8 |
| Ave. Power (≤W/ set) | 150W | Supported Formats | JPG,GIF ,BMP, WMF,MP4 |
| Input Voltage | 24V | Screen lifespan | ＞100000 hours |
| Output Voltage | 5V | Environmental Requirements |
Temperature: - 40℃ ~ + 80 ℃ Humidity: 10% ~ 95% RH |
FAQ
Q: Can I have a sample order for Bus LED Screen?
A: Yes, we welcome sample order to test and check quality. One set sample is acceptable.
Q: How to proceed an order for Bus LED Screen?
A: 1. Let us know your requirements or application and your bus rear window parameters.
2. We quote according to your requirements or our suggestions.
3. Confirms the samples and places deposit for formal order.
4. We arrange the production.
Q: What is your delivery time?
A: We will deliver in 3-25 work days.
Installation Instruction
Bus LED Screen is fixed at the rear window position of the bus, the bus factory embedded iron plate under the mounting bracket. When install the screen, first fix the bracket. Then use the side hexagon screws to fix the Bus LED Screen. Fix the antenna nearby to make sure it can receive the signal.
After installation, check the routing, power supply, and the bus condition to make sure if it can work normally. Open the power switch and ACC switch and check if the screen can be brightened normally.
You should check the following two points. First, check whether the rear window and the whole area in the bus is clean. Secondly, check whether there are iron dust and saw dust left by drilling holes in the engine. Record the ID number on the screen and the corresponding vehicle number. When everything is done, close the vehicle power supply and the bus door.
Schematic diagram of wiring assembly
Bus LED Screen Case
