Product Details:
|
| Name: | Bus Led Display | Pixed Pitch: | 5.625mm |
|---|---|---|---|
| LED Type: | SMD2727 | Display Size: | 1620*360mm |
| Ave.Power（≤W/ Set）: | 150w | Cabinet Weight: | 11KG/PCS |
| Power Supply: | 24V | Brightness: | ≥4500CD/m² |
| High Light: | fcc bus led screen,size 1620*360mm bus led screen,5.625mm bus led panel |
||

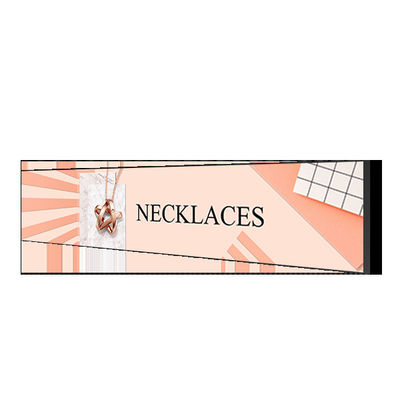

FCC P5.625 LED Bus Screen Display Size 1620*360mm For Commercial Ads
Description
Bus is an important part of urban public transportation. There are a huge number of bus in every city around the world. Choose bus to release your commercial ads can let more people to know your brands and products. Bus LED Screen is a new mobile media platform that could display advertising and news coverage, the appearance of it gives a broad new space to the vehicle LED screen. As a professional vehicle LED screen manufacturer, 3U View can give you the best product and best services. Drop me you need, we do the rest!
Advantages
1. The power consumption is as low as 120w on average.
2. Light and thin structure, only 12KG/PCS.
3. Bus LED Screen passed a variety of tests, which is anti-static, anti-vibration, high temperature and moisture-proof.
4. It support 4G and WiFi, which has advertising release system and cluster control. Meanwhile, GPS, secondary development are introduced as well.
5. High brightness and high refresh rate. Even in direct sunlight, Bus LED Screen is highly visible and provide superior visuals.
Product Parameters
| Pixel Pitch | 5.625mm | Cabinet Material | Iron |
| Display Size | 1620*360mm | Cabinet Color | Black |
| Module Size | 360*180mm | Cabinet Weight | 11KG/PCS |
| Screen Resolution | 288*64 | Viewing Angle | 120°/120° |
| Module Resolution | 64*32 | Refresh Rate | 1920Hz |
| Cabinet Size | 1625*375*60 | Brightness | 4500 cd/m2 |
| Max. Power (≤W/ set) | 500W | Driving Method | 1/8 |
| Ave. Power (≤W/ set) | 150W | Supported Formats | JPG,GIF ,BMP, WMF,MP4 |
| Input Voltage | 24V | Screen lifespan | ＞100000 hours |
| Output Voltage | 5V | Environmental Requirements |
Temperature: - 40℃ ~ + 80 ℃ Humidity: 10% ~ 95% RH |
FAQ
Q: Are you a manufacturer or Trading company?
A: We are manufacturer which offer OEM/ODM service.
Q: Is yours a manufacturing company or a trading company?
A: We have been focusing on the R&D, production and sales of LED Car Screens since 2013. We have our own R&D team and manufacturing base. Our products are sold all over the world.
Q: What certification does your company have?
A: In addition to CE, FCC, RoHS and other international certifications, our company also passed the IATF16949 system certification, which is currently the highest international vehicle equipment products certification standard.
Q: How does your manufacturer do regarding quality control
A: Quality is priority. Our manufacturer has gained CE , RoHS, FCC authentication etc.
Q: What products do you have now?
A: Our company has five product series:
1.Double-sided Taxi Roof LED Display
2.Rear Window LED Display
3.Bus LED Screen
4.Motorbike LED Screen
5.Backpack LED Screen
Installation Instruction
Bus LED Screen is fixed at the rear window position of the bus, the bus factory embedded iron plate under the mounting bracket. When install the screen, first fix the bracket. Then use the side hexagon screws to fix the Bus LED Screen. Fix the antenna nearby to make sure it can receive the signal.
1. Bus LED Screen is installed in the rear of the bus, the base must be fixed by 4 self-tapping screws.
2. LED Screen and the rear window should keep the distance of a palm. If the screen is too close to the glass, The screws fixing the screen bracket may become aging and loose. In this situation, vehicle shake may break the window. The screen should be installed in the center of the rear space of the bus.
3. The installation effect is shown in the figure. The power cord can outlet either from left side or right side of the cabinet.
Bus LED Screen Case
