Product Details:
|
| Name: | Bus Led Display | Pixed Pitch: | 5mm |
|---|---|---|---|
| LED Type: | SMD2727 | Display Size: | 1600*320mm |
| Ave.Power（≤W/ Set）: | 120w | Cabinet Weight: | 18KG/PCS |
| Power Supply: | 24V | Brightness: | ≥4500CD/m² |
| High Light: | 24v bus led screen,intelligent release system bus led screen,5mm pixed pitch bus led display |
||

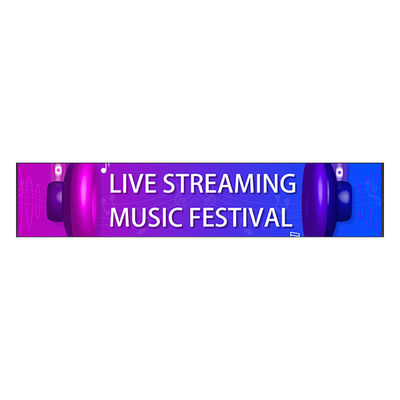

Intelligent Release System P5 Bus LED Screen Outdoor LED Advertising Screen
Description
Compared to the traditional advertising media, Bus LED Screen can provides all-day branding, seven days a week. Through the intelligent vehicle LED screen, commercial advertising could reach almost every corner of the city. Vehicle LED advertising screen is a cost-effective and practical way to advertise brands and products. If you’re looking for a product that has the performance and the ads effect that you need. 3U View is the best choice for you!
Advantages
1. High brightness. Using highlighted outdoor LEDs to make sure more brighter and more clearer under the direct sunlight.
2. Safe, reliable and stable. LED panel tested under the temperature 70°C and humidity for 96 hours and whole display tested at 70°C for 24 hours.
3. Energy saving design. To be drived existing battery system of Bus and adopted smart cooling system design.
Product Parameters
| Pixel Pitch | 5mm | Cabinet Material | Iron |
| Display Size | 1600*320mm | Cabinet Color | Black |
| Module Size | 320*160mm | Cabinet Weight | 18KG/PCS |
| Screen Resolution | 320*64 | Viewing Angle | 120°/120° |
| Module Resolution | 64*32 | Refresh Rate | 1920Hz |
| Cabinet Size | 1630*325*65 | Brightness | 4500 cd/m2 |
| Max. Power (≤W/ set) | 400W | Driving Method | 1/8 |
| Ave. Power (≤W/ set) | 120W | Supported Formats | JPG,GIF ,BMP, WMF,MP4 |
| Input Voltage | 24V | Screen lifespan | ＞100000 hours |
| Output Voltage | 5V | Environmental Requirements |
Temperature: - 40℃ ~ + 80 ℃ Humidity: 10% ~ 95% RH |
FAQ
Q: How to connect power cables?
A: The yellow wire is connected to the battery positive, the black wire is connected to the battery negative, and the white wire is connected to the cigarette lighter on the car.
Q: Why using three wires to control the screen?
A: In order to better protect the battery on the car, the extra white line is the trigger line, avoiding the screen is still operating after the vehicle shutdown, which will cause the loss of the car battery.
Q: Can I have a sample order for Bus LED Screen?
A: Yes, we welcome sample order to test and check quality. One set sample is acceptable.
Q: How to proceed an order for Bus LED Screen?
A: 1. Let us know your requirements or application and your bus rear window parameters.
2. We quote according to your requirements or our suggestions.
3. Confirms the samples and places deposit for formal order.
4. We arrange the production.
Q: What is your delivery time?
A: We will deliver in 3-25 work days
Aging Test
Bus LED Screen Case
